Communicator Add-On for BricsCAD
BricsCAD Promo! 15% off new licenses through 6/30

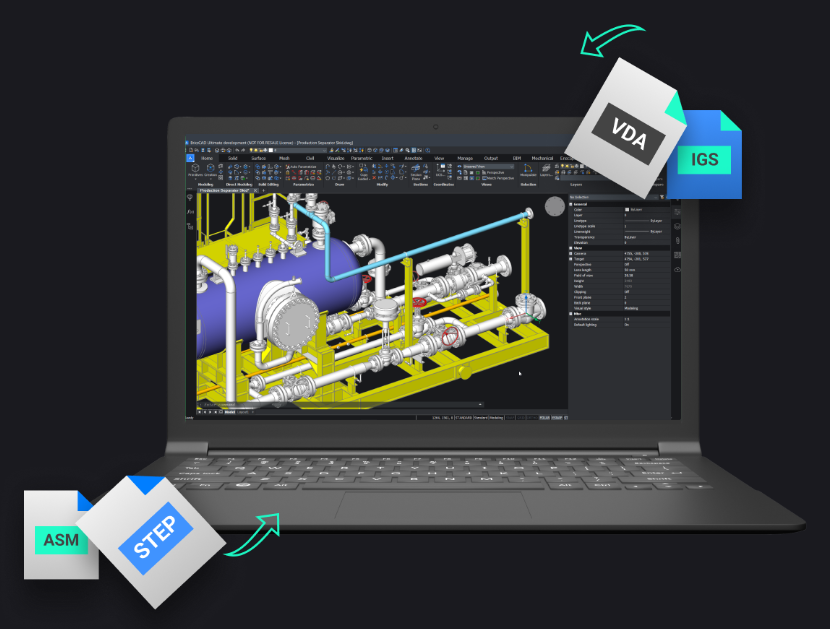

Communicator for BricsCAD* is an add-on product that allows users to seamlessly import geometry & Product Manufacturing Information (PMI) data from all major CAD applications.
Communicator for BricsCAD is an add-on for BricsCAD Pro, BricsCAD BIM, BricsCAD Mechanical or BricsCAD Ultimate. The Communicator for BricsCAD license term must match the license term of the base BricsCAD product it runs on, whether that is a 1-year subscription, 3-year subscription or perpetual license.
*This purchase is for the add-on only and requires a separately purchased license of BricsCAD Pro, BricsCAD BIM, BricsCAD Mechanical or BricsCAD Ultimate.
Description
| Windows | MacOS | Linux | |
|---|---|---|---|
| IMPORT | |||
| ACIS: .asab, .asat, .sab, .sat | ✔️ | ✔️ | ✔️ |
| Autodesk Inventor: .iam, .ipt | ✔️ | ❌ | ❌ |
| CATIA v4: .model | ✔️ | ✔️ | ✔️ |
| CATIA v5/v6: .CATPart, .CATProduct, .CGR | ✔️ | ❌ | ❌ |
| Creo Elements / Pro Engineer: .asm, .prt | ✔️ | ✔️ | ✔️ |
| IGES: .iges, .igs | ✔️ | ✔️ | ✔️ |
| NX: .prt | ✔️ | ❌ | ❌ |
| Parasolid: .xmt_bin, .xmt_txt, .x_b, .x_t | ✔️ | ✔️ | ✔️ |
| Siemens: .jt | ✔️ | ❌ | ✔️ |
| SolidWorks: .sldasm, .sldprt | ✔️ | ❌ | ✔️ |
| STEP: .step, .stp, .stpz | ✔️ | ✔️ | ✔️ |
| VDA-FS: .vda | ✔️ | ✔️ | ✔️ |
| XCGM: .xcgm | ✔️ | ❌ | ✔️ |
| Solid Edge: .par, .asm, .psm | ✔️ | ❌ | ✔️ |
| STL: .stl | ✔️ | ❌ | ❌ |
| EXPORT | |||
| 3D PDF: .pdf | ✔️ | ❌ | ✔️ |
| ACIS: .asab, .asat, .sab, .sat | ✔️ | ✔️ | ✔️ |
| CATIA v4: .model | ✔️ | ✔️ | ✔️ |
| CATIA v5: .CATPart, .CATProduct | ✔️ | ❌ | ❌ |
| IGES: .iges, .igs | ✔️ | ✔️ | ✔️ |
| STEP: .step, .stp | ✔️ | ✔️ | ✔️ |
| VDA-FS: .vda | ✔️ | ✔️ | ✔️ |
| XCGM: .xcgm | ✔️ | ❌ | ❌ |
